Glass clamp 52×52 with safety plate, AISI316

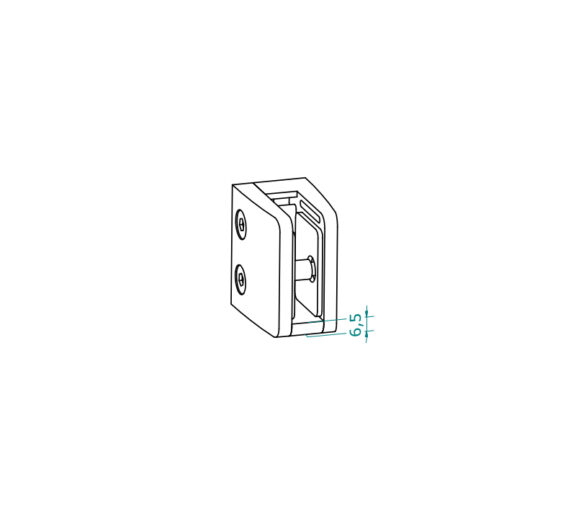

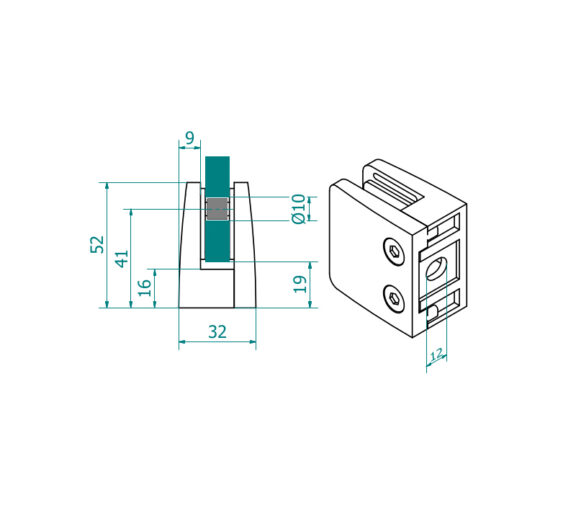

A stainless steel AISI316 glass clamp can be used in difficult external conditions, such as straight neighbourhood of a sea and busy highway. Suits for glasses with thicknesses of 8 mm, 8.76 mm, 10 mm, 10.76 mm, 12 mm, 12,76 mm and 13,52 mm. Is fastened on a structure with a DIN912 M8 bolt (not included). Includes safety plate (for avoiding glasses to gravitate).
We always support partners with our experience
- We perform strength calculations when necessary
- We design and produce project-based fixing accessories
- We develop load-bearing glass structures
If you are looking for the best possible solution, be sure to contact us!
