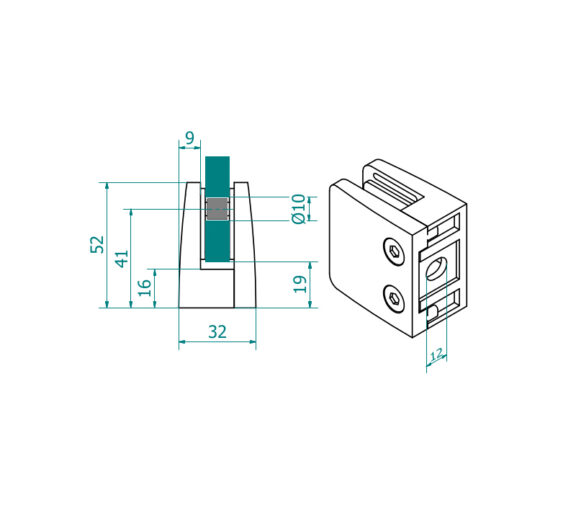

Glass clamp 52×52 with safety plate, AISI316
I lager

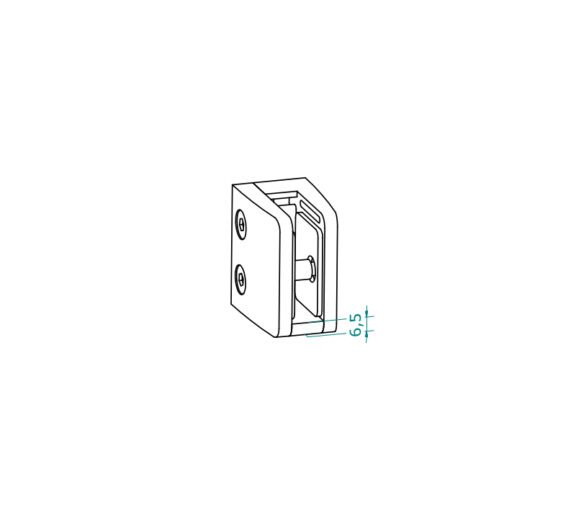

A stainless steel AISI316 glass clamp can be used in difficult external conditions, such as straight neighbourhood of a sea and busy highway. Suits for glasses with thicknesses of 8 mm, 8.76 mm, 10 mm, 10.76 mm, 12 mm, 12,76 mm and 13,52 mm. Is fastened on a structure with a DIN912 M8 bolt (not included). Includes safety plate (for avoiding glasses to gravitate).
54 pcs in box.
