Capacity to perform strength calculations
The largest warehouse of architectural glass fixings in the Baltics
1,600+ projects in the Baltics and Scandinavia

We always support partners with our experience

  • We perform strength calculations when necessary
  • We design and produce project-based fixing accessories
  • We develop load-bearing glass structures

If you are looking for the best possible solution, be sure to contact us!

Custom solutions process

Glass railings

A glass railing profile provides an opportunity to create balcony railings, staircase railings or other railings free of posts without compromising at the expense of safety.

Our aluminium glass railing profiles are adjustable, meaning it is possible to level the glass inside the profile, which helps to save valuable installation time. All our systems are adjustable except bendable GP and profile with 25.5 mm glass.

Over 40 km of R-FIX glass railing profiles have been installed in the Baltics,  Scandinavia and elsewhere. We have valuable experience and reliable technical information in this area. For questions and further information, do not hesitate to contact us!

Show more text

According to the requirements of the design, five different profile models can be selected:

Profile model Permitted linear load Suitable glass thicknesses Spacing of fixing apertures Adjustability of the glass angle
GPR1 1.5 kN/m 10 – 21.5 mm 250 mm Yes
GPR1F 1.5 kN/m 10 – 21.5 mm 250 mm Yes
GPR1Y 1.5 kN/m 10 – 21.5 mm 250 mm Yes
GPR3 3 kN/m 21.5 – 25.5 mm 200 mm  21.5-yes; 25.5-no
GP 1.5 kN/m 10 – 21.5 mm 200 mm No

The profiles are provided with milled fixing apertures in the bottom or side. To cover side apertures, we offer aluminium claddings and plastic caps. M10 or M12 anchors suitable for the substructure are used to fasten the profiles.

We keep in stock sufficient quantity of profiles with two different surface finishes:

  • Brushed-anodised surface coating, which resembles stainless steel in appearance and is durable in both indoor and outdoor conditions.
  • Raw aluminium without surface coating suitable to be powder coated or to be mounted in a place where the profile is not visible.

As accessories to the profile system, we offer drainage blocks that are compatible with GPR1 and GPR3 profiles. They are used to raise the profile 10 mm above the floor, so that water can flow freely away from between the drainage blocks. In addition to the profile systems, there are also different handrails and clamps for the glass railing that can be used to connect the glasses and stiffen the railing.

The delivery time of the glass railings and handrails in stock is generally 1  week, depending on where they need to be transported. We can also provide powder coated systems according to the RAL code. The delivery time of these is 1-2 weeks depending on the length of the painting lead time.

Close text

Adjustable glass railing profile 1,5kN/m
Product code: GPR1
Amount
Adjustable glass railing F-profile 1,5kN/m
Product code: GPR1F
Amount
Adjustable glass railing Y-profile 1,5kN/m
Product code: GPR1Y
Amount
Adjustable glass railing profile 3kN/m
Product code: GPR3
Amount
Curved glass railing profile 1,5kN/m
Product code: GP
Amount
End cap for GPR1 and GP profiles
Product code: GPD.EC
Amount
Staircase end cap for GPR1 and GP profiles
Product code: GPD.ECS
Amount
Side fix cladding for GPR1 profile, L=6m
Product code: GPR1.SPC
Amount
Side fix cladding for GPR1 Y-profile, L=6m, brushed SS-effect
Product code: GPR1Y.SPC
Amount
Sidefixing hole cap for GPR profiles, brushed SS-effect
Product code: GPRD.SC1
Amount
Sidefixing hole cap for GPR profiles, smooth surface
Product code: GPRD.SC2
Amount
Drainage profile for base fixed GPR1 system
Product code: GPRD.WD1
Amount
Drainage profile for base fixed GPR3 system
Product code: GPRD.WD3
Amount
Connecting dowel for GPR1 and GPR3 profiles
Product code: GPRD.DO
Amount
Glass adjustment tool for GPR profiles
Product code: GPRD.TOOL1
Amount
Wedge installation tool for GPR profile
Product code: GPRD.TOOL2
Amount
Connecting dowel for GP profile
Product code: GPD.DO
Amount
Wedge installation tool for GP profile
Product code: GPD.TOOL
Amount
Rectangular slotted handrail 60x40 mm for glass, anodized SS-effect
Product code: HR6040.S
Amount
Rectangular slotted handrail 60x40 mm for glass, raw aluminium
Product code: HR6040.R
Amount
U-profile handrail for glass 6+6 mm, anodized SS-effect, L=6m
Product code: HRU.135
Amount
U-profile handrail for glass 8+8 mm, anodized SS-effect, L=6m
Product code: HRU.175
Amount
U-profile handrail for glass 10+10 mm, anodized SS-effect, L=6m
Product code: HRU.215
Amount
U-profile handrail connector 90°
Product code: HRU.C1
Amount
U-profile handrail connector 180°
Product code: HRU.C2
Amount
U-profile handrail end cap, glass 6+6 mm
Product code: HRU.EC135
Amount
U-profile handrail end cap, glass 8+8 mm
Product code: HRU.EC175
Amount
U-profile handrail end cap, glass 10+10 mm
Product code: HRU.EC215
Amount
Slot tube Ø42.4x1.5, AISI316 satin
Product code: HRDS424.316
Amount

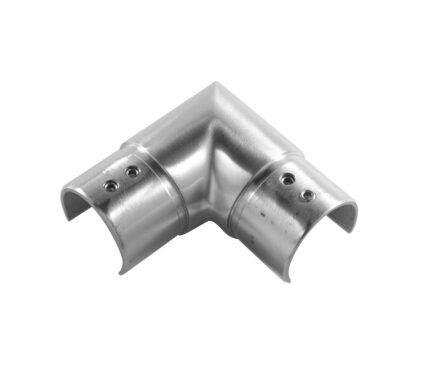

Slot tube connector 90°, AISI316
Product code: HRDS.EG115
Amount
Slot tube connector 180°, AISI316
Product code: HRDS.EG215
Amount
Slot tube connector for the stair rise, lower, AISI316
Product code: HRDS.EG915
Amount
Slot tube connector for the stair rise, upper, AISI316
Product code: HRDS.EG815
Amount
Slot tube wall flange, AISI316
Product code: HRDS.EG515
Amount
Slot tube end cap, AISI316
Product code: HRDS.EG315
Amount
Rubber gasket for slot tube, glass 11.5-13.5mm
Product code: HRDS.R12
Amount
Rubber gasket for slot tube, glass 16-17.5mm
Product code: HRDS.R16
Amount
Rubber gasket for slot tube, glass 20-21.5mm
Product code: HRDS.R20
Amount
