Adjustable glass railing profile 3kN/m
• Unit: metre
• See the introduction video from here
• GPR3 system suits well for heavy duty glass railings with line load up to 3kN/m

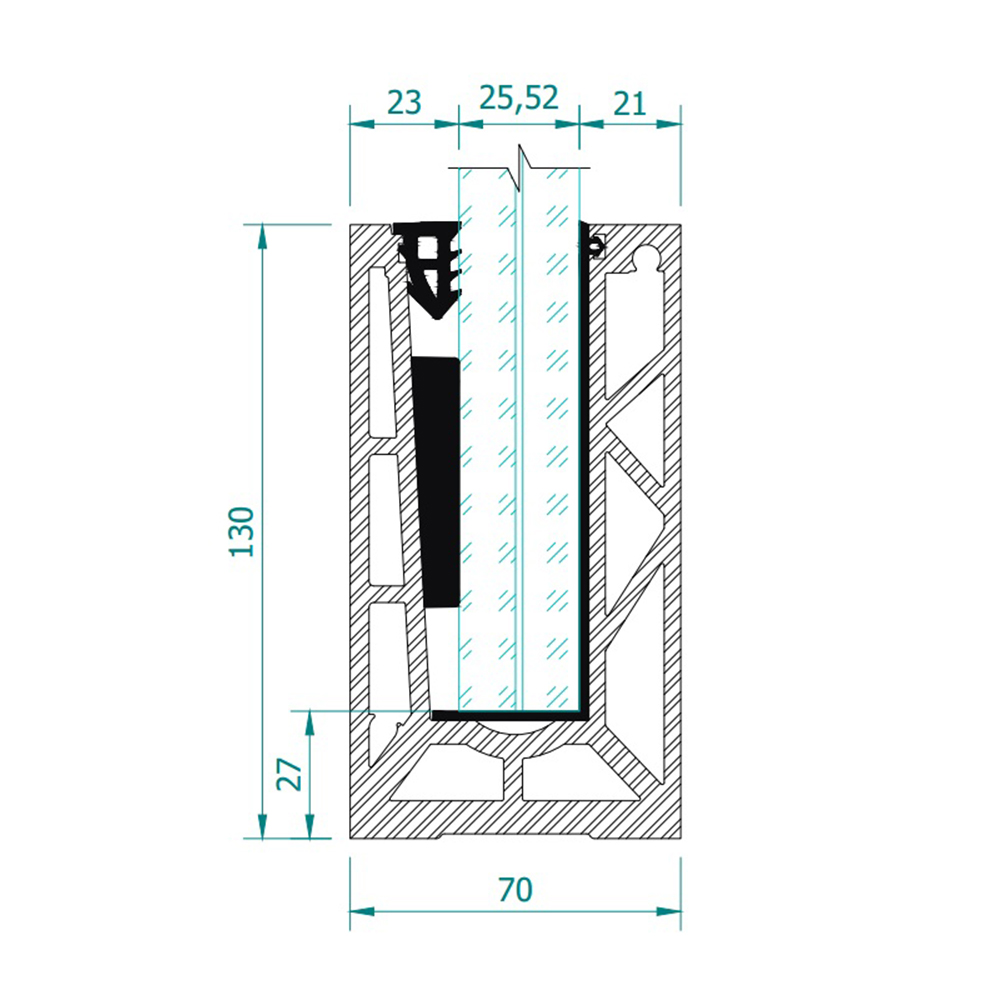

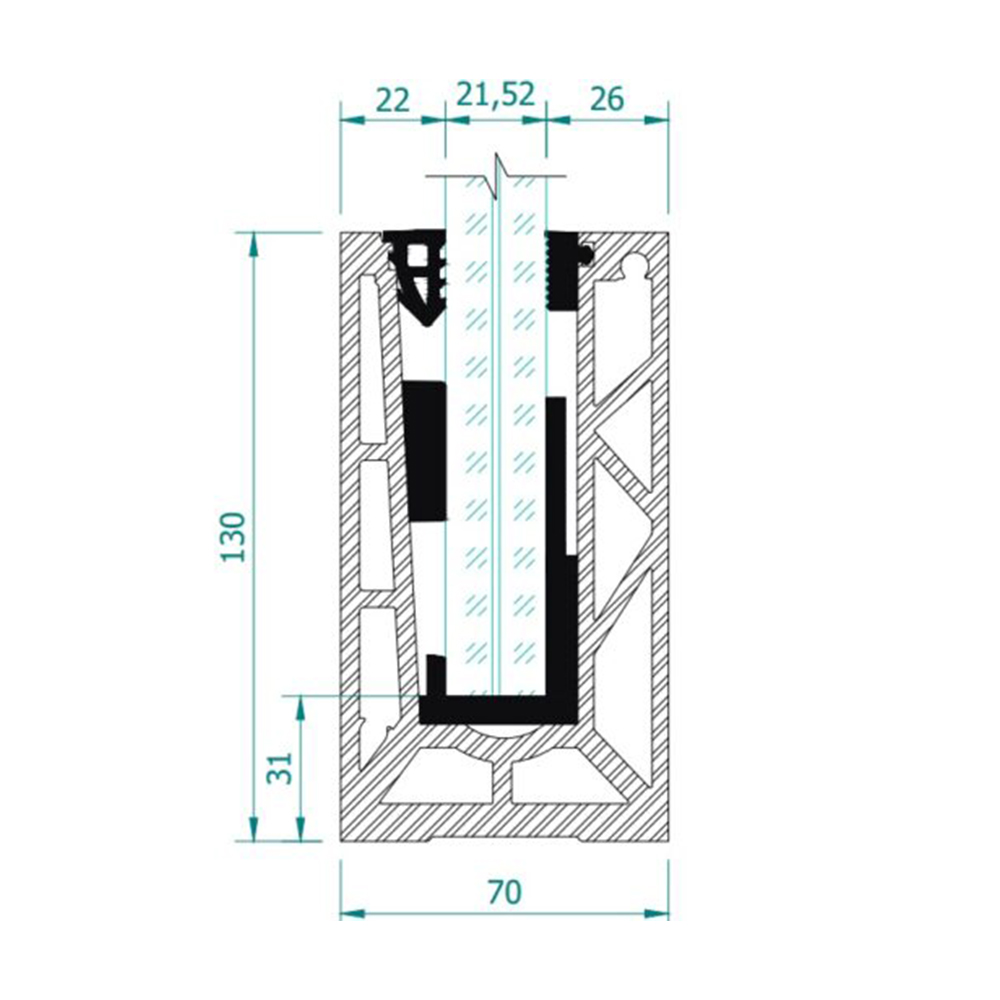

• 10+10mm glass angle can be adjusted in profile, 12+12mm glass angle is not adjustable
• Glass thicknesses (mm): 20,76; 21,52; 25,52
• Available bottom fixed and side fixed profiles
• Profiles have pre-drilled fastening openings with spacing 200 mm
• Standard profile length 5m and 6m (please ask availability), custom lengths available
• Surface finishing: brushed “stainless steel effect” anodized / raw aluminium / RAL powder coated
• Integrated drainage system
• System is tested with line load 4,5 kN/m
• Price includes rubber gaskets and plastic parts for glass fastening
This product can be powdercoated to RAL-colourWe always support partners with our experience
- We perform strength calculations when necessary
- We design and produce project-based fixing accessories
- We develop load-bearing glass structures
If you are looking for the best possible solution, be sure to contact us!
