Adjustable glass railing profile 1,5kN/m, anodized SS-effect

R-FIX_Adjustable_railing_profile_GPR1
R-FIX_Adjustable_railing_profile_GPR_scheme_
R-FIX_Adjustable_railing_profile_GPR1_basefix
R-FIX_Adjustable_railing_profile_GPR1_sidefix
R-FIX_GPR1_system_measurements
R-FIX_GPR1_base_hole
R-FIX_GPR1_side_hole
R-FIX_Adjustable_railing_profile_GPR1
R-FIX_Adjustable_railing_profile_GPR_scheme_
R-FIX_Adjustable_railing_profile_GPR1_basefix
R-FIX_Adjustable_railing_profile_GPR1_sidefix
R-FIX_GPR1_system_measurements
R-FIX_GPR1_base_hole
R-FIX_GPR1_side_hole
Amount
Amount
Unit

m

SKU: GPR1

• Unit: metre
See the introduction video from here
• Glass angle can be adjusted in profile which reduces installation time significantly

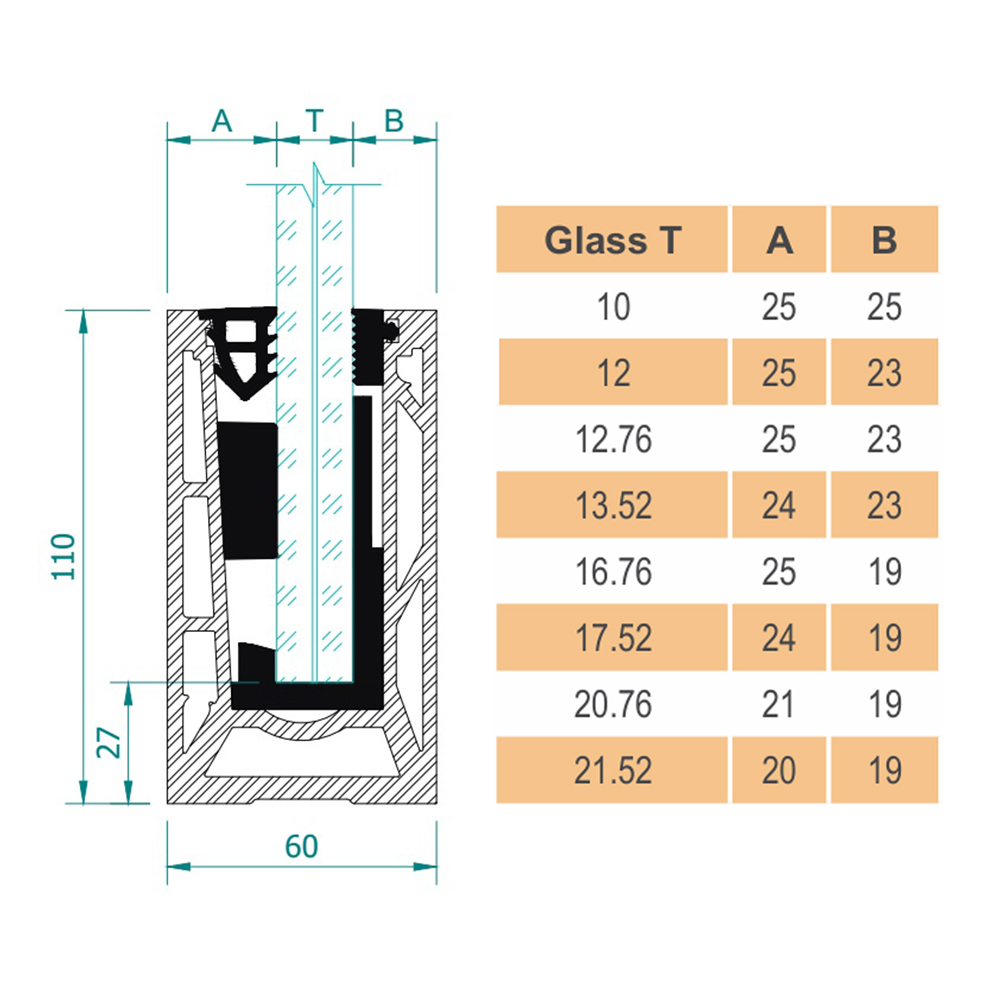

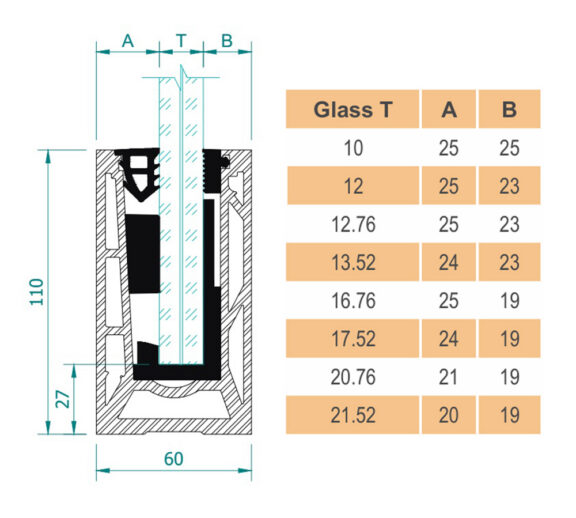

• Glass thicknesses (mm): 10; 12; 12,76; 13,52; 16,76; 17,52; 20,76; 21,52
• Available bottom fixed and side fixed profiles
• Profiles have pre-drilled fastening openings with spacing 250 mm
• Standard profile lengths 2,5m, 3m, 5m and 6m (please ask availability), custom lengths available
• Surface finishing: brushed “stainless steel effect” anodized
• Integrated drainage system
• System is tested with line load 2,25 kN/m
• Price includes rubber gaskets and plastic parts for glass fastening

We always support partners with our experience

  • We perform strength calculations when necessary
  • We design and produce project-based fixing accessories
  • We develop load-bearing glass structures

If you are looking for the best possible solution, be sure to contact us!
