Capacity to perform strength calculations
The largest warehouse of architectural glass fixings in the Baltics
1,600+ projects in the Baltics and Scandinavia

We always support partners with our experience

  • We perform strength calculations when necessary
  • We design and produce project-based fixing accessories
  • We develop load-bearing glass structures

If you are looking for the best possible solution, be sure to contact us!

Custom solutions process

Glass clamps

Over 150,000 pieces of R-FIX glass clamps have been installed in Scandinavia, the Baltics and elsewhere. We have valuable experience and reliable technical information in this area. For questions and further information, do not hesitate to contact our specialist!

Glass clamps are designed to fix the glass to the baluster posts or other substructure, as well as to attach glass panes to each other. R-FIX glass clamps have been tested and have the necessary documentation.

Show more text

Minimalistic GCF type clamps are used in the case of glass railings for fixing the glass pieces between one another and for fixing the end glass on the wall. This gives the possibility of stiffening the glass railing without a handrail on top of the glass. GCF clamps are made of 2205 Duplex stainless steel with the highest corrosion resistance and they are suitable for glass sizes 12.76 mm to 17.52 mm.

By using side fix GC5 type glass clamps it is possible to build glass railings, in which case the glass panes are fixed in front of the posts. This creates a uniform surface of glass with minimal joint gaps when viewed from the front of the railing. In addition, it is possible to build French balconies with GC5 clamps, in which case 4 clamps keep the glass pane on the window jamb. Side fix clamps are made of stainless steel 1.4401 (AISI316) suitable for the external environment and they are suitable for glass with a thickness of 8 mm to 12.76 mm.

Other models of glass clamps are designed to fix glass panes between the baluster posts and are suitable for glass sizes between 6 mm and 12.76 mm. In external conditions, we recommend using a stainless steel 1.4401 (AISI316) or powder-painted zamak-clamp. For the use in interior conditions there is a stainless steel 1.4301 (AISI304) clamp or stainless steel zamak-clamp with steel effect. The surface of all clamps is brush finished and they can be fixed to a straight substrate or to Ø42,4 mm round tube.

For most clamps, special safety plates can be used to prevent the glass from falling down. In this case, the clamps with safety plates must be placed at the lower corners of the glass so that the lower edge of the glass rests on the safety plates. This method of installation is mandatory if there is a risk that someone may be injured by the glass collapsing. However, it is also recommended to use the safety plates in the case glass may vibrate due to the wind, which causes the glass to collapse over time.

After installation, it is recommended to clean the glass clamps with special cleaning foam. When cleaning the glass railings, do not use highly acidic or alkaline cleaners, as they may damage the surface of stainless steel and cause corrosion.

We keep all glass clamps in stock in sufficient quantities. The R-FIX warehouse is located a 15-minute drive from Tallinn in Kiili, 14 Kurna street.

Close text

Railing clamp glass-glass 90°, duplex 2205
Product code: GCF3
Amount
Railing clamp glass-glass 180°, duplex 2205
Product code: GCF2
Amount
Railing clamp glass-wall, duplex 2205
Product code: GCF1
Amount
Glass clamp 60x60 double-sided, AISI316
Product code: GC52.S16
Amount
Glass clamp 60x50 single-sided, AISI316
Product code: GC51.S16
Amount
Safety plate for 60x60 clamps, AISI316
Product code: GC5P.S16
Amount
Adapter for 60x60 clamps, for D42.4mm tube, AISI316
Product code: GC5A42.S16
Amount
Glass clamp 30x30, AISI304
Product code: GC91.S4
Amount
Glass clamp 45x45, AISI304
Product code: GC11.S4
Amount
Glass clamp 45x45, AISI316
Product code: GC11.S16
Amount
Glass clamp 45x45, zamak SS-effect
Product code: GC11.ZS
Amount
Glass clamp 45x45, raw zamak
Product code: GC11.ZR
Amount
Glass clamp 45x45, AISI304, for D42.4 tube
Product code: GC12.S4
Amount
Glass clamp 45x45, AISI316, for D42.4 tube
Product code: GC12.S16
Amount
Glass clamp 45x45, zamak SS-effect, for D42.4 tube
Product code: GC12.ZS
Amount
Glass clamp 45x45, raw zamak, for D42.4 tube
Product code: GC12.ZR
Amount
Safety plate for 45x45 clamps, AISI316
Product code: GCP.S16
Amount
Safety plate for 45x45 clamps, zamak SS-effect
Product code: GCP.ZS
Amount
Safety plate for 45x45 clamps, zamak raw
Product code: GCP.ZR
Amount

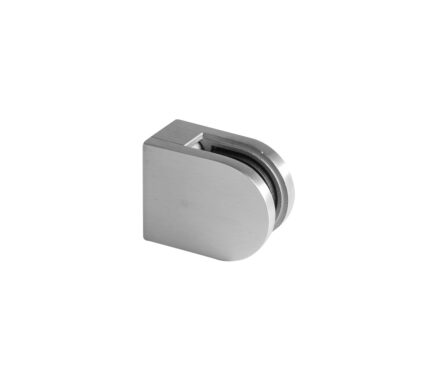

Glass clamp 50x40, AISI304 satin
Product code: GC21.S4
Amount
Glass clamp 50x40, AISI316 satin
Product code: GC21.S16
Amount
Glass clamp 50x40, AISI304, for D42.4 tube
Product code: GC22.S4
Amount
Glass clamp 50x40, AISI316, for D42.4 tube
Product code: GC22.S16
Amount
Glass clamp 52x52 with safety plate, AISI304
Product code: GC31.S4
Amount
Glass clamp 52x52 with safety plate, AISI316
Product code: GC31.S16
Amount
Glass clamp 52x52 with safety plate, AISI304, for D42.4 tube
Product code: GC32.S4
Amount
Glass clamp 52x52 with safety plate, AISI316, for D42.4 tube
Product code: GC32.S16
Amount
