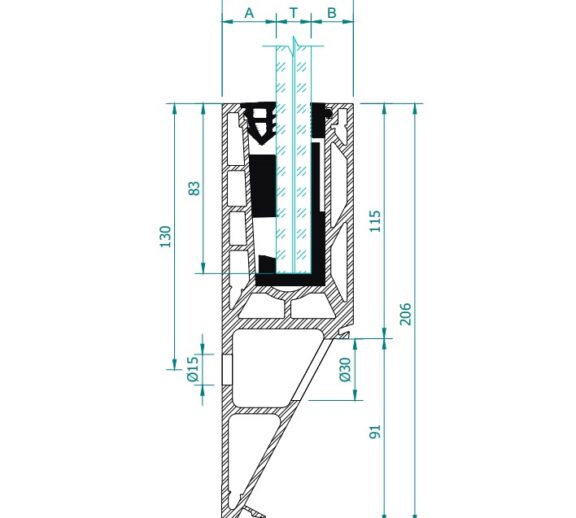

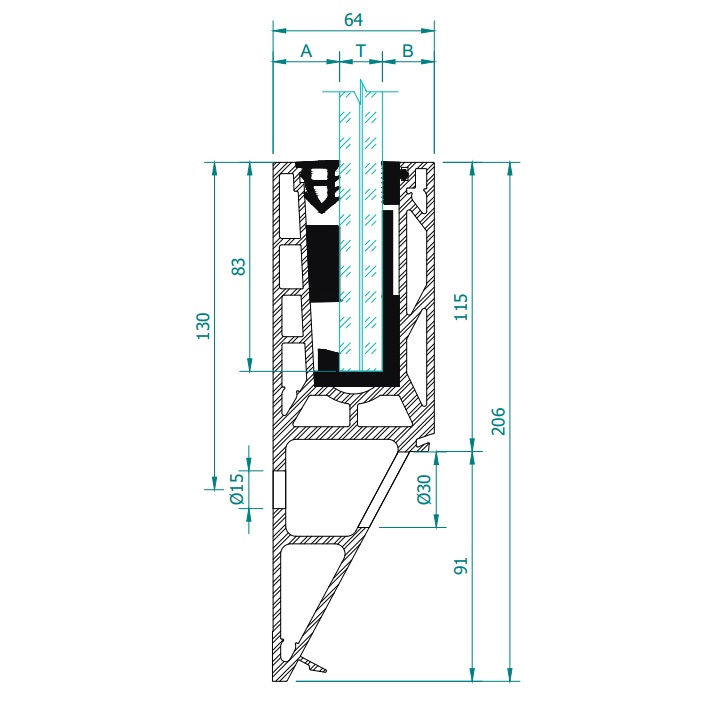

Adjustable glass railing Y-profile 1,5kN/m
• Unit: metre
• See the introduction video from here
• Glass angle can be adjusted in profile which reduces installation time significantly

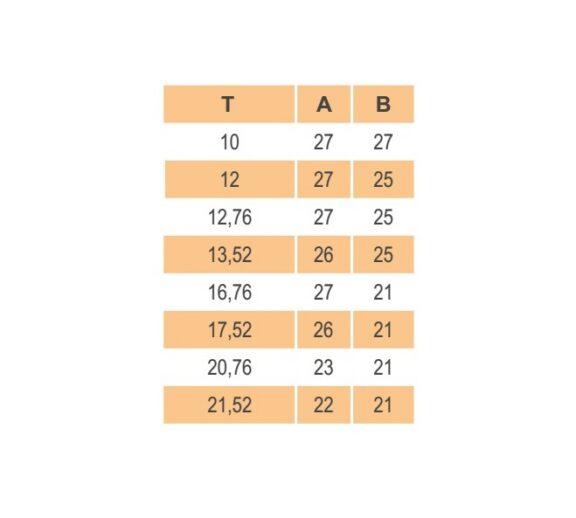

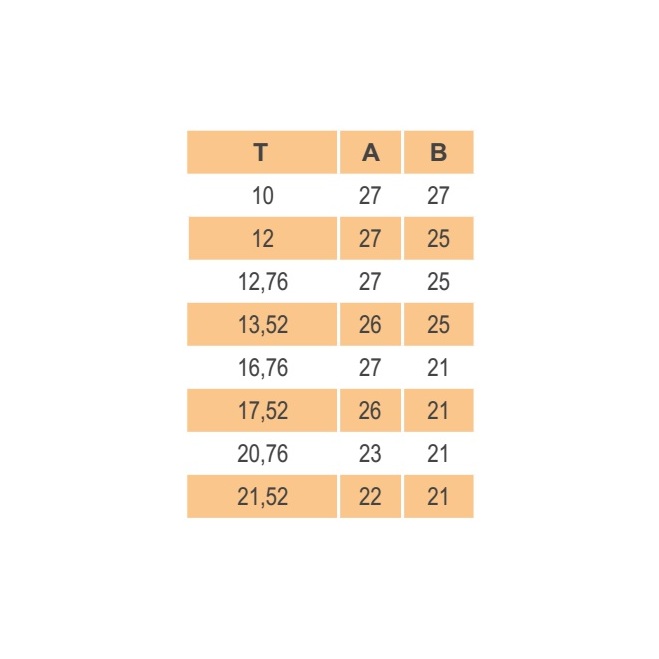

• Glass thicknesses (mm): 10; 12; 12,76; 13,52; 16,76; 17,52; 20,76; 21,52
• Profiles have pre-drilled fastening openings with spacing 250 mm
• Standard profile length 5m and 6m (please ask availability), custom lengths available
• Surface finishing: brushed “stainless steel effect” anodized / raw aluminium / RAL powder coated
• Integrated drainage system
• System is tested with line load 2,25 kN/m
• Price includes rubber gaskets and plastic parts for glass fastening
• Side fix cladding sold separately
We always support partners with our experience
- We perform strength calculations when necessary
- We design and produce project-based fixing accessories
- We develop load-bearing glass structures
If you are looking for the best possible solution, be sure to contact us!
