Adjustable glass railing profile 1,5kN/m, matte black sand structure
• Unit: metre
• See the introduction video from here
• Glass angle can be adjusted in profile which reduces installation time significantly

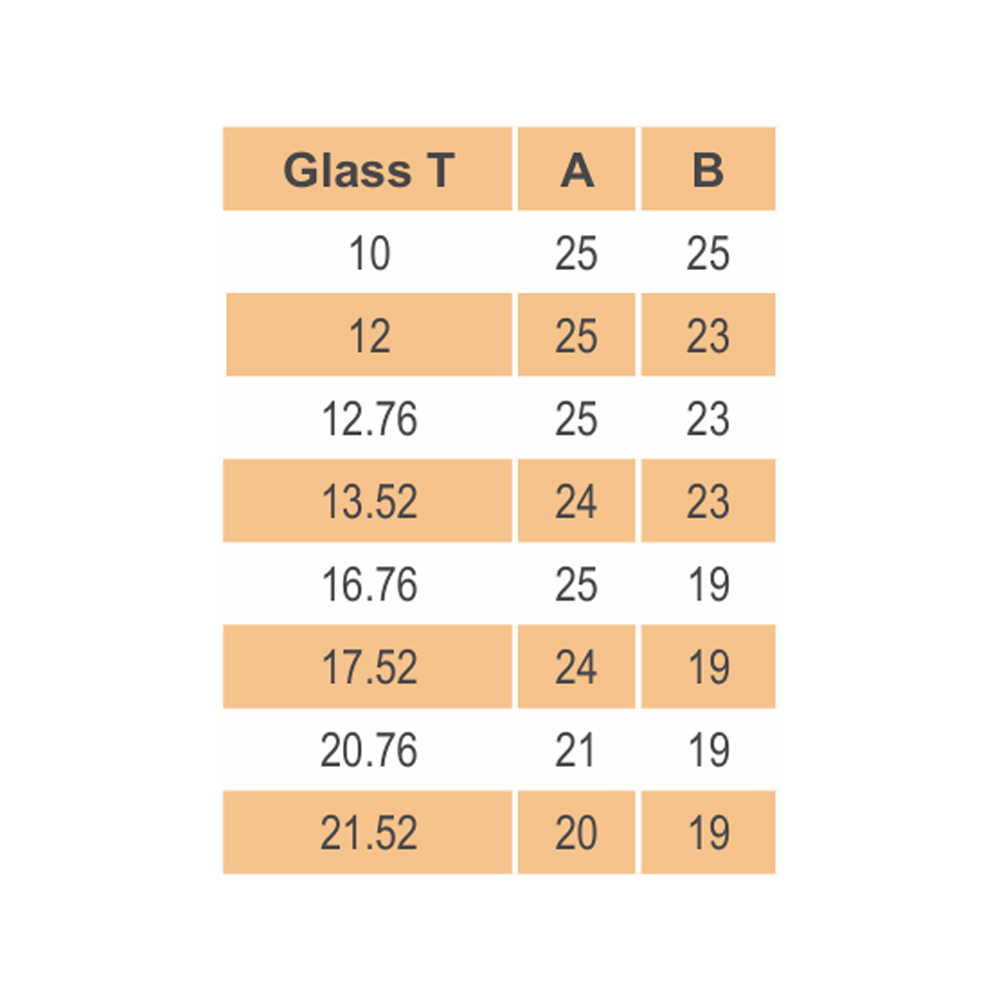

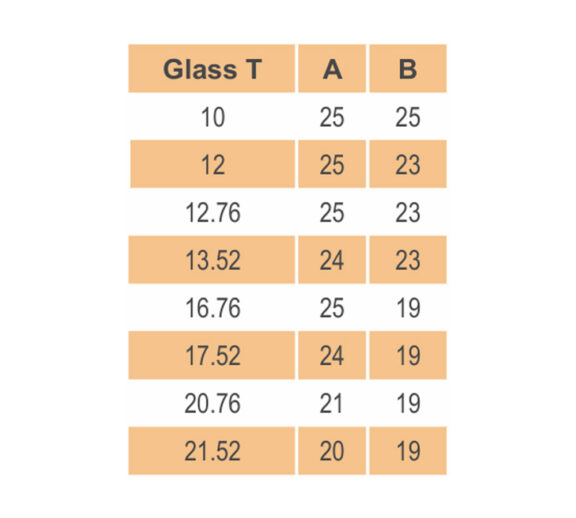

• Glass thicknesses (mm): 10; 12; 12,76; 13,52; 16,76; 17,52; 20,76; 21,52
• Available bottom fixed and side fixed profiles
• Profiles have pre-drilled fastening openings with spacing 250 mm
• Standard profile lengths 2,5m, 3m, 5m and 6m (please ask availability), custom lengths available
• Surface finishing: RAL9005 powder coated matte black (sand texture)
• Integrated drainage system
• System is tested with line load 2,25 kN/m
• Price includes rubber gaskets and plastic parts for glass fastening
Vi ger alltid våra samarbetspartners full support med vår erfarenhet
- Vi utför hållfasthetsberäkningar vid behov
- Vi designar och tillverkar projektbaserade fästbeslag
- Vi projekterar bärande glaskonstruktioner
Om du vill hitta den bästa lösningen, kontakta oss!
