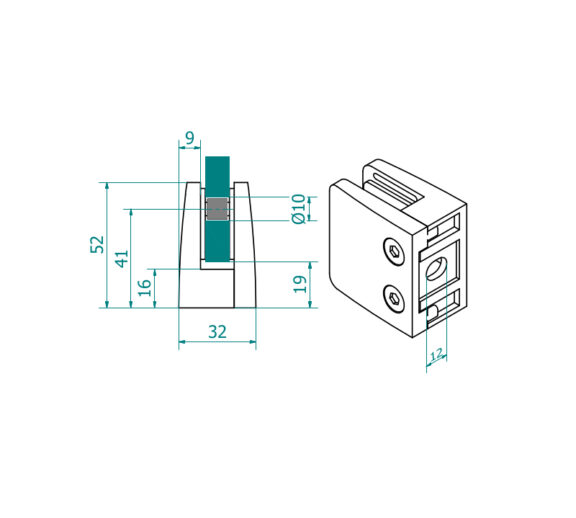

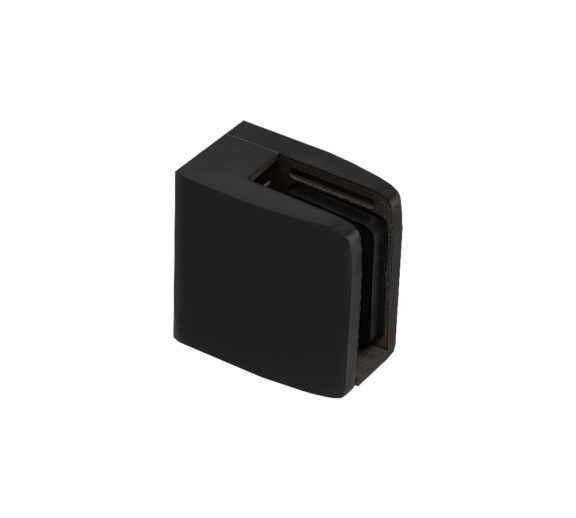

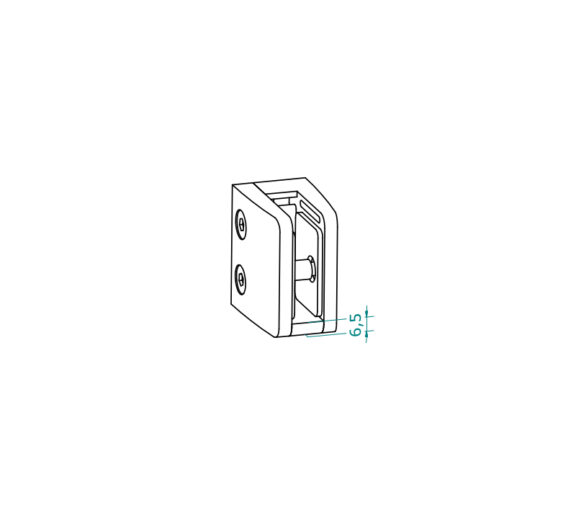

Economy series glass clamp 52×52 with safety plate, AISI304, black
I lager
Economy series products are lighter and offer a cost-effective alternative to our premium quality products.
• The products are intended for lighter glazing applications and are not designed for use in railing systems
• A stainless steel AISI304 glass clamp can be used in internal and external conditions, except in the straight neighbourhood of a sea and busy highway.
• Suits for glasses with thicknesses of 8 mm, 8.76 mm, 10 mm, 10.76 mm, 12 mm, 12,76 mm and 13,52 mm
• Is fastened on a structure with a DIN912 M8 bolt (not included)
• Colour: RAL 9005 matte
• Economy series products are sold only in full boxes (48 pcs per box)
