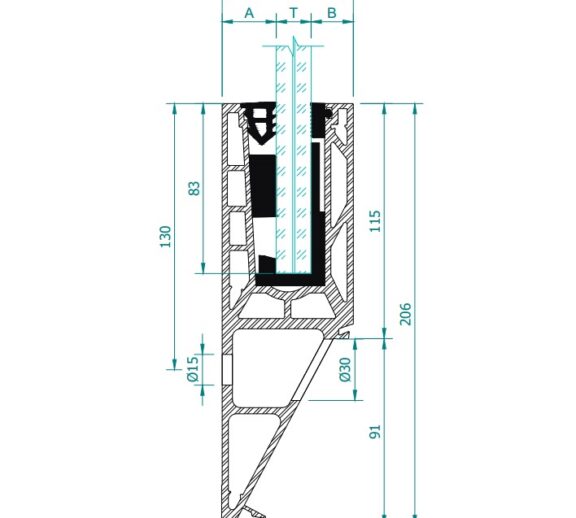

Adjustable glass railing Y-profile 1,5kN/m, raw aluminium
• Unit: metre
• See the introduction video from here
• Glass angle can be adjusted in profile which reduces installation time significantly
• Glass thicknesses (mm): 10; 12; 12,76; 13,52; 16,76; 17,52; 20,76; 21,52
• Profiles have pre-drilled fastening openings with spacing 250 mm
• Standard profile length 5,5m and 6 m, custom lengths available
• Surface finishing: brushed “stainless steel effect” anodized / raw aluminium / RAL powder coated
• Integrated drainage system
• System is tested with line load 2,25 kN/m
• Price includes rubber gaskets and plastic parts for glass fastening
• Side fix cladding sold separately
This product can be powdercoated to RAL-colourSadarbības partnerus vienmēr atbalstām ar savu pieredzi
- Ja nepieciešams, veicam stiprības aprēķinus
- Veidojam un ražojam konkrētiem projektiem paredzētus stiprinājumu piederumus
- Projektējam nesošās stikla konstrukcijas
Ja jums nepieciešams atrast patiešām vislabāko risinājumu, sazinieties ar mums!
